The best one-piece concealed trapway toilets combine a seamless tank-and-bowl profile with a smoother exterior that can simplify routine cleaning. This specification-based comparison uses public listing data rather than hands-on testing or customer opinions. The selections cover compact bathrooms, comfort-height seating, dual-flush systems, included seats, and different visual styles. Check rough-in requirements, dimensions, seat height, and included installation hardware before choosing a model for your bathroom.
This is a specification-based comparison, not a hands-on product test. Editorial scores use a published weighted formula: concealed-trapway cleanability (25.0%), flush configuration and efficiency (25.0%), seating and bowl comfort (20.0%), installation fit and planning (15.0%), included practical components (15.0%). A limited non-published marketplace adjustment is applied internally after the editorial formula; its underlying values are not reproduced. The combined result determines rank, while the displayed editorial score is calibrated proportionally across the selected products from 9.9 for the highest weighted result to 8.3 for the lowest. Potential limitations are editorial inferences based on documented category-relevant attributes; they are not observations from hands-on testing.
The Revactic ranking
The CD-T006 combines a documented 17.5-inch comfort height, elongated bowl, dual flush, fully skirted trapway, soft-close quick-release seat, and a 12-inch rough-in.
This one-piece model pairs chair-height seating with a fully concealed trapway, 1.28 GPF dual flushing, a listed 1000g MaP score, and a soft-closing seat.

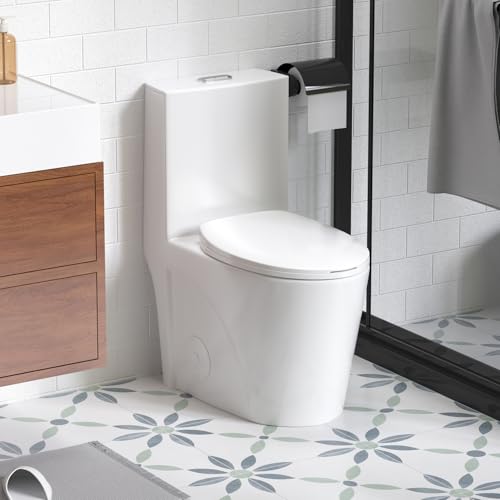

The GDFStudio model offers an ADA comfort height, elongated bowl, 1.1/1.6 GPF dual flush, fully glazed ceramic, and a concealed trapway.
Gerber's Sedria uses a 1.28 GPF QuietClean flush, concealed trapway, soft-close elongated seat, and identified Fluidmaster fill and flush valves.
The Sarlai SL-C76 provides a tall comfort-height elongated design, concealed trapway, soft-closing seat, 12-inch rough-in, and several installation components.
The Cimarron combines an elongated comfort-height bowl, concealed trapway, 1.28 GPF flush, AquaPiston technology, and an included quiet-close seat.
This compact DeerValley model lists a 24.5-inch length, 13.375-inch width, concealed skirted trapway, dual flush, and soft-closing seat.
The San Souci uses a compact elongated bowl, comfort-height seating, a concealed trapway, 1.28 GPF flushing, and a fully glazed 2-1/8-inch trapway.
The Veil offers a one-piece skirted profile, 0.8/1.28 GPF dual flush, elongated bowl, fully glazed trapway, and a hidden-cord option.
The Key West is a 1.28 GPF one-piece elongated chair-height toilet with a concealed trapway, built-in skirt, and included seat.
The best one-piece concealed trapway toilets are defined by several features working together: a tank and bowl molded as one unit, a skirted or otherwise concealed discharge path, and a flush system suited to the bathroom’s daily use. The products in this comparison are ranked from public listing specifications. They were not installed or tested, and the ranking does not represent customer sentiment.
Measure the available depth, width, and height before comparing finishes or flush buttons. A rough-in is measured from the finished wall to the center of the floor drain, so confirm the measurement at the installation site rather than assuming that a standard-looking bathroom has a standard layout.
Projection matters in compact rooms. The DeerValley DV-1F52813 lists a 24.5-inch length, making it the most space-focused choice in this selection. KOHLER’s San Souci is described as compact while retaining an elongated bowl. By contrast, a model such as the DeerValley F52636-01 has a listed 33.5-inch length, so it requires more clearance. Also check the listed width, tank height, door swing, vanity position, and access to the water-supply connection.
Elongated bowls generally provide more front-to-back seating area than round bowls, but they can require more room. The Casta Diva CD-T006, WOODBRIDGE T-0001-MB, KOHLER Cimarron, KOHLER Veil, and Sarlai SL-C76 all document elongated configurations. The DeerValley DV-1F52813 instead uses a compact round bowl, which helps explain its small footprint.
Comfort height is another practical distinction. Casta Diva lists a 17.5-inch comfort-height seat, while WOODBRIDGE and several other selected models describe chair-height or ADA-oriented seating. Taller seating may make sitting down and standing up easier for many adults, but it is not automatically preferable for every user. Measure an existing toilet and consider the needs of children, shorter users, and anyone who uses a mobility aid.
A 1.28 GPF flush is documented for the KOHLER Cimarron, Gerber Sedria, Signature Hardware Key West, and WOODBRIDGE models. Dual-flush toilets provide separate water amounts for different waste types.
Do not treat a gallon-per-flush figure as a complete performance test. Some listings also provide a MaP figure or a named flushing technology. Casta Diva, GDFStudio, WOODBRIDGE, and several similarly configured products list a 1000g MaP score. KOHLER identifies AquaPiston technology on the Cimarron, while Gerber identifies QuietClean dual rim jets and Fluidmaster valves. These details are useful for comparison, but public listing claims should not be presented as independent test results.
A concealed trapway hides the curved discharge passage behind a smooth outer profile. That design is one reason buyers choose this category: the exterior has fewer visible bends, bolt covers, and recesses than a traditional exposed trapway. The Gerber Sedria, KOHLER Veil, Signature Hardware Key West, WOODBRIDGE, and DeerValley DV-1F52813 listings all describe skirted or concealed-trapway construction.
A smooth exterior does not eliminate the need for normal cleaning. Pay attention to access around the base, seat hinges, flush actuator, and supply connection. Fully glazed surfaces and glazed trapways are documented on several selected models, including KOHLER San Souci, KOHLER Veil, GDFStudio, and DeerValley DV-1F52813.
Included components can affect installation planning. Sarlai identifies a soft-closing seat, wax ring, floor bolts, and instructions. WOODBRIDGE lists a pre-installed seat, water fitting, wax ring, floor bolts, and a hand wrench. Casta Diva lists a seat, wax seal, and installation hardware. Gerber includes a soft-close elongated seat, while KOHLER Cimarron includes a quiet-close seat.
The KOHLER Veil is different: its listing says no seat is included and positions the model for a compatible custom bidet seat. KOHLER San Souci’s listing also does not identify an included seat. Supply lines may be separate, and KOHLER specifically says the Cimarron’s supply line is not included. Treat included hardware as listing-specific and verify the package before scheduling an installer.
White remains the most broadly adaptable finish among these products, but the comparison also includes teal, matte black, light gray, and pink options. Style should follow the room’s other fixtures, but unusual colors and decorative profiles deserve extra attention to replacement-seat, button, and accessory compatibility.
Casta Diva CD-T006 One-Piece Toilet ranks first overall in this specification-based comparison under the published weighted criteria.
Casta Diva CD-T006 is the highest-scoring returned product and the first overall specification-based choice. It combines the clearest comfort-height information, dual flushing, a fully skirted trapway, a soft-close quick-release seat, and an identified 12-inch rough-in. For a complete accessory package, WOODBRIDGE T-0001-MB is a strong alternative. Small-room shoppers should begin with DeerValley DV-1F52813 or KOHLER San Souci. Users planning a compatible bidet seat should examine KOHLER Veil. These are among the top one-piece concealed trapway toilets because each addresses a different documented installation or use priority.
The best one-piece concealed trapway toilets still require site verification. Confirm rough-in, dimensions, water connection, seat height, bowl projection, and included parts before ordering.
They combine the tank and bowl into one fixture and hide the trapway behind a skirted or smooth exterior. That creates a more uniform appearance and may reduce visible areas where dust collects. The Gerber Sedria, Signature Hardware Key West, and WOODBRIDGE listings specifically describe this concealed or skirted construction.
A dual-flush design provides a choice between two listed water amounts, such as 1.1 and 1.6 GPF or 0.8 and 1.28 GPF. Actual water use depends on which control is selected and how the toilet is used. Compare the published flush figures and look for additional documentation such as the WaterSense references listed for GDFStudio and KOHLER Veil.
Comfort-height and ADA-oriented models can make sitting down and standing up easier for many adults. Casta Diva lists a 17.5-inch seat height, and several other products describe chair-height seating. Standard-height compact models such as DeerValley DV-1F52813 may be preferable where a shorter seat or smaller footprint matters. Measure existing fixtures and consider all household users.
The concealed exterior can make the finished fixture easier to wipe around, but it does not guarantee a simpler installation. Floor access, rough-in alignment, weight, supply connections, and bolt access still matter. Some listings include wax rings, bolts, or tools, while others do not. Review the package contents and installation instructions before deciding whether professional installation is appropriate.
Verify the rough-in, overall dimensions, seat height, bowl shape, flush configuration, water connection, finish, and included seat or hardware. Also confirm whether a supply line is included. These checks are especially important for compact bathrooms, bidet-seat installations, and replacements where the existing floor outlet or wall clearance cannot be moved.
