Buying Guide
The best truck cargo racks are defined less by a single headline specification than by how well the rack matches the truck, cargo, and installation plan. Start with the bed dimensions and mounting surface, then compare capacity, rack shape, tie-down provisions, and material.
Match the rack to the cargo
Over-cab ladder racks are intended for long items that extend beyond the bed. The ECOTRIC and Garvee designs document over-cab layouts, while the VEVOR 1000-Lb rack uses front and rear crossbars for ladders, lumber, kayaks, and other long loads. This arrangement keeps long cargo elevated above the bed and can distribute it across two support points.

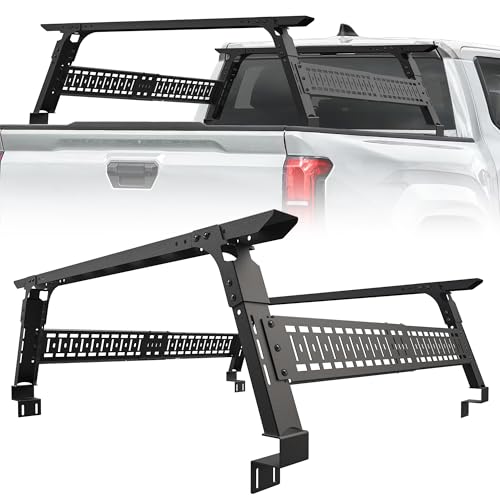

Overland bed racks use a different layout. The VEVOR 900-Lb, TIEZFUL, and JOYTUTUS products provide taller bed-mounted structures with side panels or mounting surfaces. These designs are documented for kayaks, surfboards, tents, fuel tanks, recovery boards, and related gear. The JOYTUTUS rack specifically lists rooftop-tent use, while TIEZFUL provides adjustable height.

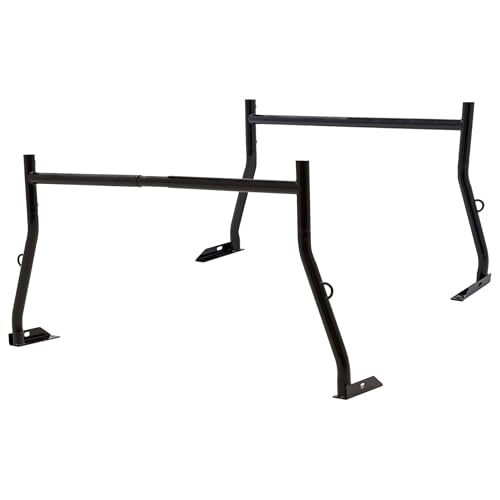

A basic utility rack may be preferable when the main task is carrying ladders, pipes, or lumber and you do not need extensive accessory mounting. The Elevate Outdoor aluminum model and the JY PERFORMANCE ladder rack represent simpler utility-focused approaches.
Verify dimensions and fitment
Measure the usable bed width before selecting a rack. The widest adjustment ranges in this group include 49 to 73 inches for the VEVOR 800-Lb rack and JY PERFORMANCE, 52 to 71 inches for OUTPRIZE, and 57.25 to 74 inches for Elevate Outdoor. A broad range does not guarantee compatibility, so compare the measurement with the truck’s actual side rails and bed shape.
Also check length and height when carrying long or elevated loads. The VEVOR 1000-Lb rack adjusts its installation length from 63 to 75.6 inches. ECOTRIC lists an approximately 140-inch overall length and an over-cab design. TIEZFUL documents adjustment in all three dimensions, including height from 22.09 to 25.04 inches. These details matter when the rack must clear a cab, bed accessories, or a particular cargo profile.
Choose the mounting method
No-drill mounting is useful when the rack must be removable or when permanent holes are undesirable. JY PERFORMANCE uses four J-bolt clamps, VEVOR’s 1000-Lb model uses eight J-bolts, and Garvee describes a flat C-fixture installation without drilling. OUTPRIZE is the most flexible in the supplied evidence because it documents both drilled and no-drill J-bolt installation.
Drilled mounting can be appropriate when a permanent attachment is part of the installation plan. The VEVOR 800-Lb model requires drilling, while the VEVOR 900-Lb overland rack installs with bed-rail brackets and can also be directly drilled. Follow the product’s stated hardware and truck-compatibility requirements rather than assuming that a universal label covers every bed.
Bed tracks and tonneau covers need particular attention. Several selected racks explicitly exclude bed tracks or tonneau covers, including the VEVOR 800-Lb and 900-Lb models. JOYTUTUS is listed for full-size trucks without bed rails and without a tonneau cover. A rack that depends on bed rails is not interchangeable with one designed for a specific track or cover channel.
Compare capacity carefully
Load capacity should be matched to the cargo and the rack’s installation conditions. The selected products list capacities from 500 pounds for Elevate Outdoor to 1,000 pounds for VEVOR’s 1000-Lb rack, ECOTRIC, and Garvee. The VEVOR 900-Lb, JOYTUTUS 882-Lb, and several 800-pound models sit between those figures.
The evidence uses different terms, including maximum load, tested load, and static load. JOYTUTUS, TIEZFUL, and the VEVOR overland rack specify static capacity, while JY PERFORMANCE describes an 800-pound tested load capacity. Treat those labels as product-specific rather than directly interchangeable. The rack, fasteners, truck bed, and cargo tie-down system all need to be suitable for the intended load.
Look for cargo-control features
Tie-down points help determine how easily cargo can be secured. VEVOR’s 1000-Lb rack and JY PERFORMANCE list rope hooks, while ECOTRIC provides multiple tie-down points for straps, bungees, and ropes. OUTPRIZE also includes rope hooks, and Elevate Outdoor lists two D-loops. Side panels, slotted surfaces, and Molle panels on the overland designs provide additional attachment locations for compatible gear.
Crossbar design also affects loading. VEVOR’s 1000-Lb rack has a detachable rear crossbar for loading taller items, and its listing describes an aerodynamic front crossbar. Consider whether the rear support must be removed for forklifts or tall cargo, and confirm that any straps or accessories are compatible with the rack’s documented attachment points.
Consider materials and outdoor exposure
Steel is common among the selected racks and is described as heavy-duty, reinforced, automotive-grade, or carbon steel depending on the model. Powder-coated or corrosion-resistant finishes appear throughout the listings. Aluminum is the distinguishing material on Elevate Outdoor, which lists a 21.6-pound product weight and a powder-coated finish. That lower listed weight may simplify handling, but its 500-pound capacity is below the higher-capacity steel options.
The listed coatings are intended to resist rust, corrosion, scratches, or weather exposure, but the evidence does not establish a universal maintenance schedule or lifespan. Inspect mounting hardware and finish periodically, especially when the rack is used outdoors or exposed to road debris.
Final Recommendation
VEVOR 1000-Lb Adjustable Truck Ladder Rack ranks first overall in this specification-based comparison under the published weighted criteria.
VEVOR 1000-Lb Adjustable Truck Ladder Rack is the first overall specification-based choice among these best truck cargo racks. Its 1,000-pound listed capacity, adjustable width and length, no-drill J-bolt mounting, optional drilled installation, tie-down points, and detachable rear crossbar create the most complete specification profile for varied long-cargo work.
Choose ECOTRIC when an over-cab format and large adjustment range matter most. Garvee is another strong over-cab option with a tool-free installation description. JY PERFORMANCE is a practical removable choice for full-size pickups, while OUTPRIZE stands out for offering both drilled and no-drill mounting.
For accessory-oriented setups, compare the top truck cargo racks from VEVOR, TIEZFUL, and JOYTUTUS. Their side panels, slots, Molle panels, and documented tent or outdoor-gear applications support a more modular bed system. Elevate Outdoor is the clearest lightweight alternative, but its listed capacity is lower.
Frequently Asked Questions
What should I check before choosing the best truck cargo racks?
Check bed width, rail or track type, tonneau-cover compatibility, rack height, installation length, and the cargo’s weight and dimensions. Also confirm whether the listed capacity is static, tested, or described as a maximum load. The selected products use different mounting systems, so verify that the included brackets, J-bolts, or C-fixtures suit the truck.
Are no-drill truck cargo racks removable?
The supplied evidence shows removable or no-drill approaches on several models. JY PERFORMANCE uses J-bolt clamps, VEVOR’s 1000-Lb model uses J-bolts, Garvee uses a flat C-fixture, and OUTPRIZE offers no-drill J-bolts alongside drilled mounting. Removal still depends on the truck-bed design and the installation hardware, so follow the model-specific instructions.
Which of the top truck cargo racks is suited to rooftop tents?
JOYTUTUS explicitly lists rooftop tents among its supported cargo and provides an 882-pound static capacity with four Molle panels. The VEVOR 900-Lb and TIEZFUL overland racks document outdoor cargo applications and slotted mounting areas, but the supplied listings do not specifically state rooftop-tent compatibility for those models.
Do all truck cargo racks work with tonneau covers?
No. Several selected racks state that they are not suitable for tonneau covers, including the VEVOR 800-Lb and 900-Lb models. JOYTUTUS also lists compatibility without a tonneau cover. Check the exact cover and rail configuration before selecting a rack; a universal width range does not establish cover compatibility.
Is aluminum better than steel for a truck rack?
The evidence supports a trade-off rather than a universal answer. Elevate Outdoor uses aluminum and lists a 21.6-pound product weight with a 500-pound capacity. The other selected racks mainly use steel and list capacities from 800 to 1,000 pounds. Choose based on required load, handling, mounting design, and the truck’s documented compatibility.
