Buying Guide
The best shallow recessed lighting housings are selected first by the space above the ceiling, then by the installation stage and the light source you plan to use. A shallow housing is useful when joists, soffits, roof slopes, or existing framing leave less room than a conventional can requires. The listings in this comparison include both remodel housings installed through a finished ceiling and new-construction housings mounted during rough-in.
Start with remodel or new construction
Choose a remodel housing when the ceiling is finished and the opening already exists or will be cut from below. The HALO H27RICAT, TORCHSTAR 6-Inch Shallow Remodel Housing, Designers Fountain EVR6SLICRAT-N-6, Anyhome 6-Inch E26 Remodel Housing, HALO H27RICT, Juno IC20R, and Sunco 4-Inch Remodel Housing are described for this type of work. Remodel springs or clips hold the housing against the ceiling material, so the material thickness and cutout must match the listing.
New-construction housings are installed before drywall. The HALO H2550ICAT and HALO H27ICAT use bar-hanger systems and rough-in wiring features for framing-stage installation. The HALO H245ICAT is also documented with pre-installed bar hangers for tight framing and obstructed areas. Do not substitute a new-construction housing for a remodel product simply because the aperture size is the same; the mounting method is different.
Measure the available depth and opening
Compare the product’s listed height with the actual clearance above the ceiling. The HALO H245ICAT lists a 3.5-inch height and uses a 4-inch format, while the Sunco 4-Inch Remodel Housing is another compact option. The 5-inch Juno IC20R and several 6-inch products require a different cutout and trim system. The HALO H27ICAT is described as under 6 inches deep, and the HALO H2550ICAT is designed for 2×6 construction.
A product title alone is not enough to establish fit. The Designers Fountain model specifies standard 6-inch openings and ceiling material between 3/8 and 5/8 inch. Juno lists a 5-1/2-inch cutout and springs for material up to 1-1/8 inches. Measure the finished ceiling, framing, insulation, and obstruction locations before ordering. For an existing opening, verify both aperture diameter and the space needed for the junction box.
Check IC and Air-Tite details
IC rating matters when insulation may contact the housing. Air-Tite construction addresses air movement through the fixture assembly. The HALO H27RICAT, HALO H2550ICAT, HALO H27ICAT, HALO H245ICAT, and TORCHSTAR model explicitly document IC and Air-Tite features. Designers Fountain documents an IC rating, while Anyhome and Sunco also identify IC and Air-Tight construction.
These ratings do not remove the need to follow the installation instructions. The HALO H27RICAT specifically says it is not for spray foam insulation. The Designers Fountain listing limits its standard remodel mounting guidance to 3/8- to 5/8-inch ceiling material and says alternate mounting may be needed for thicker surfaces or new construction. Check local electrical requirements and the complete manufacturer instructions before installation.
Match the socket, connector, and light source
Compatibility is one of the biggest differences among shallow housings. The HALO H27RICAT and HALO H27ICAT use E26 bases, giving them a familiar socket format and supporting documented trim choices. Juno’s IC20R uses a medium-base porcelain socket and names several incandescent lamp families, including A19, BR30, R20, PAR20, and PAR30.
Other products use a connector or a more specific module ecosystem. The TORCHSTAR remodel housing is compatible with 6-inch LED downlights up to 20W and uses TP24 quick-release couplings. The HALO H2550ICAT, HALO H245ICAT, and HALO H27ICAT are described for compatible HALO LED trims or modules. Sunco also lists a TP24 connector. Confirm that the housing, trim, module, bulb, and connector are designed to work together; a matching nominal diameter does not guarantee electrical or mechanical compatibility.
Consider voltage and wiring access
Voltage should match the circuit and the selected light source. The Designers Fountain housing operates on 120V, while the HALO H2550ICAT and Sunco housing list broader 120-277V compatibility. The HALO H27ICAT is a 120V E26 housing. If the project uses commercial controls or a different supply, the voltage specification deserves attention before the housing is selected.

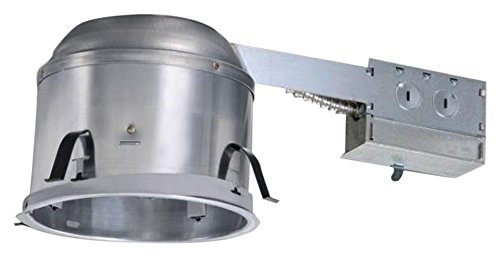

Wiring access can also affect rough-in time. HALO models document quick-connect systems, Slide-N-Side wiring traps, bar hangers, or cable connectors. TORCHSTAR’s new-construction model includes four-wire push-in connectors and three knock-out stampings. Designers Fountain includes an integrated junction box and 10 AWG wire nuts, while HALO H27RICT lists NM cable pry-outs and conduit knockouts. These features are useful only when they match the wiring method permitted for the project.
Compare aperture size and future trim choices
A 4-inch housing can preserve ceiling space and create a smaller visual opening, but it requires compatible 4-inch trim or module choices. A 5-inch housing occupies a middle position and may suit traditional lamp formats such as those documented by Juno. Six-inch housings offer the broadest representation in this comparison, but their trim and connector systems still differ.
For a renovation where future trim changes matter, an E26-based model may offer a different planning path from a TP24 or brand-specific LED-module housing. For a coordinated new-construction installation, the HALO H2550ICAT, HALO H27ICAT, and HALO H245ICAT document their intended trim families clearly. Keep the housing model and compatible trim information together for future maintenance.
Final Recommendation
HALO H27RICAT 6-Inch Shallow Remodel Housing ranks first overall in this specification-based comparison under the published weighted criteria.
The final choice among the best shallow recessed lighting housings depends on the documented features that match your intended use.
HALO H27RICAT 6-Inch Shallow Remodel Housing is the highest-scoring returned product and the first overall specification-based choice. Its 5.5-inch listed height, below-ceiling remodel installation, E26 socket, IC and Air-Tite construction, and quick-connect wiring give it a balanced specification profile for many tight-clearance remodels.
For new construction in 2×6 framing, the HALO H2550ICAT is the more targeted option because its listing specifically addresses that construction and adds 120/277V compatibility. The HALO H245ICAT is the better fit when the project requires a 4-inch housing and especially limited depth. For a multi-light remodel, the TORCHSTAR 6-Inch Shallow Remodel Housing offers an eight-unit package and documented TP24 LED compatibility.
Among the top shallow recessed lighting housings, the correct choice still depends on the opening, ceiling thickness, circuit voltage, insulation, and trim system. Treat the rankings as a specification-based starting point, then confirm the installation instructions and applicable electrical requirements.
Frequently Asked Questions
What should I check before buying the best shallow recessed lighting housings?
Measure the available above-ceiling height, the intended cutout, and the ceiling material thickness. Then confirm whether the project is remodel or new construction, whether insulation will contact the housing, and whether the chosen trim, bulb, LED module, or connector is compatible. Voltage and junction-box wiring access should also match the project.
Are shallow recessed housings suitable for insulated ceilings?
Several selected models document IC-rated construction for direct contact with insulation, including the HALO H27RICAT, HALO H2550ICAT, HALO H27ICAT, HALO H245ICAT, Designers Fountain EVR6SLICRAT-N-6, Anyhome 6-Inch E26 Remodel Housing, and Sunco 4-Inch Remodel Housing. Follow each model’s instructions. For example, the HALO H27RICAT listing excludes spray foam insulation.
Is an E26 housing better than a TP24 housing?
Neither connector is universally better. E26 models such as the HALO H27RICAT, HALO H27ICAT, and Anyhome 6-Inch E26 Remodel Housing can suit projects planned around E26 adapters, bulbs, or compatible trims. TP24 models such as the TORCHSTAR and Sunco housings are designed around compatible LED downlights or modules. Choose the system that matches the light source and trim you intend to install.
Which selected housing is designed for new construction?
The HALO H2550ICAT and HALO H27ICAT are explicitly described for new construction and include bar-hanger or rough-in wiring features. The HALO H245ICAT also documents pre-installed bar hangers and use in tight framing. Remodel products use springs or clips and are intended for installation through a finished ceiling, so the mounting method should guide the selection.
