Choosing the best plug-in screw terminals starts with matching the connector to your PCB pitch, pin count, wire range, and electrical load. This specification-based comparison highlights options for compact boards, multi-position layouts, through-wall connections, and general electronics work. It uses public listing data rather than hands-on testing or customer-opinion summaries, so verify the manufacturer’s specifications and your board dimensions before ordering.
This is a specification-based comparison, not a hands-on product test. Editorial scores use a published weighted formula: mating and mounting design (25.0%), stated voltage and current capacity (25.0%), pitch and wire-range fit (20.0%), pole count and layout fit (15.0%), package completeness (15.0%). A limited non-published marketplace adjustment is applied internally after the editorial formula; its underlying values are not reproduced. The combined result determines rank, while the displayed editorial score is calibrated proportionally across the selected products from 9.9 for the highest weighted result to 8.3 for the lowest. Potential limitations are editorial inferences based on documented category-relevant attributes; they are not observations from hands-on testing.
The Revactic ranking
A versatile 5.08mm kit with 2-, 3-, 4-, and 5-pin connectors, a 300V/15A rating, a broad 12-28AWG wire range, and an included screwdriver.
This 2-pin Phoenix-type connector set documents 5.08mm pitch, 300V/15A ratings, 24-12AWG compatibility, and a removable screw-clamp connection.

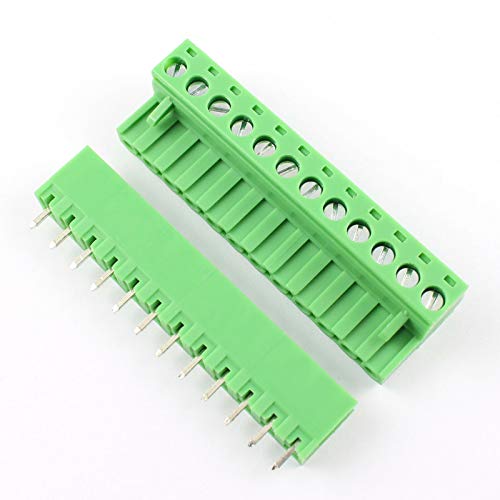

This straight 12-pin connector uses 5.08mm pitch and lists a 300V/15A rating with a 28-12AWG wire range across five sets.
A 40-piece 5.08mm set covering 2-, 3-, 4-, and 5-pin straight connectors, with male headers, female sockets, and an included screwdriver.
This 5-pin, 5.08mm through-wall connector set includes male plugs, sleeves, and female sockets, with a stated 300V/10A rating and 28-12AWG range.
This 8-pin plug-in connector uses compact 2.54mm pitch and lists a 300V/10A rating with a 24-12AWG wire range.
A straight 12-pin, 3.81mm connector set with a stated 300V/8A rating, 28-16AWG wire range, and five sets in the package.
A 2-pin, 3.81mm through-wall connector set with male plugs, sleeves, and female sockets, rated at 300V/8A for the stated 28-16AWG range.
This 5-pin male-female connector set uses 2.54mm pitch and lists 125V/8A ratings with a stated 28-16AWG wire range.
A 3-pin, 3.81mm right-angle plug-in connector package containing 10 pieces. The listing identifies it for panel and PCB DIY applications.
The best plug-in screw terminals are selected by fit, not by pin count alone. Start with the board’s connector spacing, then confirm the number of positions, wire range, electrical rating, and physical orientation. The products above are a specification-based comparison using public listing data. They were not physically tested, and the comparison does not summarize customer opinions.
Pitch is the center-to-center distance between adjacent terminal positions. A 5.08mm connector provides more room between positions and appears frequently in the selected products, including the Tnisesm 21-Piece kit, YNSSJY 20-set connector, ProCircFix 40-piece set, and several DBParts 12-pin options. It can be a practical choice when the board and enclosure have adequate space.
A 3.81mm pitch reduces the spacing between positions. The Cermant 2-pin through-wall connector and the DBParts 12-pin connector document this spacing, making them candidates for layouts that need more positions within a limited width. The kuosbiu and DBParts 8-pin products use 2.54mm spacing, also described as 0.1 inch for the DBParts option. Check the PCB footprint before ordering because similar pin counts can have very different physical dimensions.
Voltage and current ratings should be checked against the intended circuit rather than treated as interchangeable. The Tnisesm 21-Piece kit, YNSSJY connector, and DBParts 12-pin 5.08mm product list 300V/15A values. The ProCircFix set and Cermant 5-pin through-wall connector list 300V/10A. The 3.81mm DBParts 12-pin and Cermant 2-pin products list 300V/8A.
The kuosbiu connector lists 125V/8A, while the DBParts right-angle product does not provide voltage or current ratings in the supplied evidence. For that last option, the missing rating is a reason to verify the manufacturer’s documentation before using it in a higher-demand circuit. A connector’s stated rating does not replace proper wire sizing, PCB design, insulation, or applicable electrical practices.
Wire compatibility is another important separator. The Tnisesm kit lists 12-28AWG, while YNSSJY lists 24-12AWG. The ProCircFix set lists 24-12AWG, and the Cermant 5-pin through-wall product lists 28-12AWG. These ranges cover different wire sizes, so compare them with the stripped conductors you plan to use.
The 3.81mm Cermant connector and DBParts 12-pin product list 28-16AWG. The kuosbiu product also lists 28-16AWG, although its feature text includes a separate wire-diameter range, so the exact conductor fit should be checked carefully. Do not infer compatibility solely from the connector’s pitch or pin count.
Pin count should follow the number of separate conductors required by the circuit. A 2-pin connector is appropriate only when two positions are sufficient, while 3-pin and 5-pin versions can support more conductors in one removable interface. The 12-pin DBParts products are intended for much larger multi-wire groupings, but their overall width and board footprint should be confirmed.
Mixed kits can be useful when a project includes several board designs. The Tnisesm kit contains 2-, 3-, 4-, and 5-pin pieces, and the ProCircFix set includes 2-, 3-, 4-, and 5-pin straight connectors. Those packages reduce the need to buy each pin count separately, though they may include pieces that are not needed for a single design.
Straight connectors are suitable when the wire exits in the expected direction from the PCB. The DBParts 3-pin product is specifically listed as right angle, making it the selected option for a 90-degree wire path. That orientation may help with enclosure clearance or cable routing, but the available evidence does not establish a particular installation result.
Through-wall connectors address a different layout need.
Package size affects how easily a connector fits a repeated-build workflow. The ProCircFix set includes 40 pieces and a screwdriver. The Tnisesm kit includes 21 connectors in several pin counts, a screwdriver, and a plastic container. YNSSJY provides 20 sets, while the selected DBParts products generally provide five sets except for the right-angle product, which lists 10 pieces.
A larger package is not automatically better. If the design needs one fixed pin count, a dedicated set may reduce unused parts. If the design is still changing, a mixed kit may provide more useful flexibility. Also confirm whether the package contains both mating portions or only terminal blocks; the through-wall products clearly describe male, sleeve, and female-socket components.
Tnisesm 21-Piece 5.08mm Connector Kit ranks first overall in this specification-based comparison under the published weighted criteria.
Tnisesm 21-Piece 5.08mm Connector Kit is the first overall specification-based choice among these best plug-in screw terminals because it combines a 300V/15A listed rating, multiple pin counts, a broad wire range, and useful kit accessories. For a dedicated 2-pin application, YNSSJY is a strong alternative with the same listed 300V/15A rating and 20 male-female sets. ProCircFix is better suited to varied straight layouts, while the Cermant products are the more specialized top plug-in screw terminals for through-wall installations.
Before purchase, compare the connector pitch with the PCB footprint, count the required poles, check the wire range, and verify that the voltage and current ratings suit the circuit. If the project requires right-angle routing, DBParts’ 3-pin option is the only selected product that explicitly documents that orientation. If space is tight, compare the 2.54mm options against the board’s actual clearance rather than assuming every compact connector will fit.
Choose the pitch that matches the PCB footprint. The selected products document 2.54mm, 3.81mm, 5mm, and 5.08mm spacing. A 2.54mm connector can suit compact layouts, while 5.08mm may provide more spacing between positions. The board’s hole pattern and the connector’s mechanical dimensions should be confirmed before ordering.
Some selected 5.08mm products list 15A ratings, including the Tnisesm kit, YNSSJY connector, and DBParts 12-pin 5.08mm product. Others list 10A. Use the rating for the exact product, and also check the wire range, PCB layout, insulation, and circuit requirements.
A through-wall connector is useful when the connection must pass through a panel or enclosure wall.
No. Some listings describe complete male-female sets, while others identify only connector blocks or do not fully detail the mating hardware. Check the package contents for the exact product before buying.
Verify pitch, pin count, orientation, wire range, voltage rating, current rating, and package contents. Also compare the connector with the PCB footprint and enclosure clearance. For the DBParts right-angle connector, the supplied listing does not state electrical ratings, so obtain that information before selecting it for a demanding circuit.
