Choosing the best color lcd borescopes means matching the display, probe length, camera diameter, lighting, and environmental protection to the inspection job. This specification-based comparison uses public listing data rather than hands-on testing or customer opinions. The selected models cover compact handheld tools, dual-lens inspection cameras, and a longer-reach pipe system, so you can narrow the field by access needs, image documentation, and operating conditions.
This is a specification-based comparison, not a hands-on product test. Editorial scores use a published weighted formula: screen and image capability (25.0%), probe reach and access (20.0%), inspection lighting (15.0%), environmental durability (20.0%), operation and documentation (20.0%). A limited non-published marketplace adjustment is applied internally after the editorial formula; its underlying values are not reproduced. The combined result determines rank, while the displayed editorial score is calibrated proportionally across the selected products from 9.9 for the highest weighted result to 8.3 for the lowest. Potential limitations are editorial inferences based on documented category-relevant attributes; they are not observations from hands-on testing.
The Revactic ranking
The 9-inch 1080P color LCD, 98.4-foot fiberglass cable, 23mm IP68 probe, DVR, and included 16GB card make this the most specialized choice for extended pipe work.
The Kiguee offers a 4.3-inch IPS LCD, front-and-side dual lenses, IP67 protection, eight front LEDs plus a side LED, a 16.4-foot semi-rigid cable, and a 32GB card.

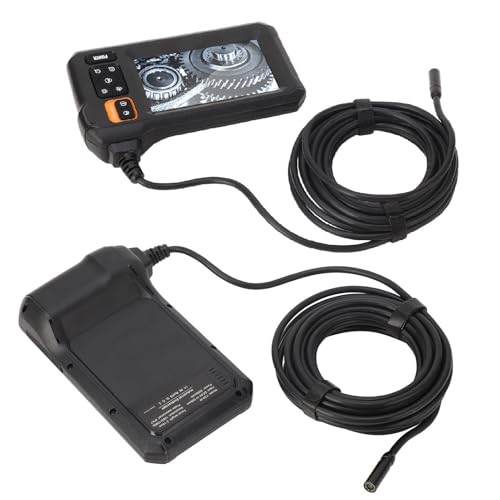

This 4.3-inch LCD borescope pairs 1080P viewing with an articulating 8mm probe, eight adjustable LEDs, IP67 protection, and a rechargeable USB-C design for direct field use.
This 5m dual-lens borescope provides a 4.3-inch color LCD, 1080P viewing, eight adjustable LEDs, IP67 protection, and a card slot supporting storage up to 64GB.
Its 5.5mm waterproof camera and 4.9-foot armored gooseneck offer precise access, while the 4.3-inch color LCD, capture functions, and included attachments keep it practical for pipe and appliance work.
Walfront documents a 4.3-inch color LCD, 1920x1080 imaging, 8mm IP67 camera, eight LEDs, 5m cable, USB-C charging, and separate device and camera operating ranges.
Badafaci supplies a 4.3-inch color LCD, 1080P real-time video, an 8mm IP67 probe, eight adjustable LEDs, a 5m cable, and a rechargeable battery in a standalone design.
Yobadam pairs a 4.3-inch color LCD with 1080P video, an 8mm IP67 probe, eight adjustable LEDs, a 5m cable, a 70-degree view, and a stated -10°C to 80°C construction range.
SASKATE combines a 4.3-inch color LCD, 1920x1080P imaging, 5m semi-rigid cable, eight LEDs, brightness and color controls, and a stated viewing angle of about 178 degrees.
A 4.3-inch color LCD, switchable dual lenses, 5m flexible cable, and eight adjustable LEDs give this model a balanced feature set for routine automotive, plumbing, and home inspections.
The best color lcd borescopes are defined less by a single headline specification than by how the complete inspection system fits the job. A narrow handheld camera can be preferable for an engine cavity or appliance, while a reel-based pipe camera is better for a long drain route. The products above were selected from the supplied listings and ranked with category-specific criteria: screen and image capability, probe access, inspection lighting, environmental durability, and operation or documentation. No score uses customer ratings, current listing information, purchase activity, or marketplace labels.
Probe diameter is one of the most practical specifications. The Klein Tools ET18 documents a 5.5mm camera, making it the clearest choice when access through a narrow plumbing opening is the priority. Several handheld models, including Badafaci, Walfront, and Yobadam, specify an 8mm camera. That remains a useful general-purpose size for automotive, HVAC, wall, and pipe inspections, but it may not enter every small passage.
Probe length matters just as much. The 5m or 16.4-foot cables on the Yunseity, Hamwesh, Kiguee, EIMSOAH, SASKATE, Badafaci, Walfront, and Yobadam models provide more reach than the Klein Tools arm. For a sewer or drain inspection extending well beyond arm’s length, the Festisoul system is in a different class with its 98.4-foot cable and hand-crank reel. Its 23mm camera head, however, requires a larger access path than the narrow handheld probes.
A forward-facing camera is straightforward for checking a target directly ahead. Dual-lens designs add a side view, which can help when the probe cannot easily be rotated. The Yunseity and Kiguee listings specifically document switchable front-and-side viewing. EIMSOAH also documents a switchable dual-lens design. These models deserve attention when inspecting junctions, pipe walls, or spaces where repositioning the cable is inconvenient.
SASKATE takes a different approach by stating an approximately 178-degree horizontal field of view and offering color inversion and brightness adjustment. The selected products show that viewing coverage can come from a side lens, a wide stated angle, or simply a more maneuverable probe; these are not interchangeable specifications.
A color LCD allows real-time viewing without depending on a phone. Most selected handhelds use a 4.3-inch screen, while the Festisoul pipe system documents a much larger 9-inch 1080P IPS LCD with 180-degree tilt. Klein Tools also uses a 4.3-inch color LCD and adds adjustable screen brightness. The choice depends on whether portability or a larger shared viewing surface matters more.
Resolution claims should be read alongside recording features. Kiguee documents a 32GB card, EIMSOAH documents support for up to 64GB, and Festisoul includes DVR recording with a 16GB card. Other listings describe storing images or videos without giving a capacity. Do not assume that every color LCD borescope has the same recording workflow; confirm whether storage is included, expandable, or unspecified before buying.
Dark cavities require usable illumination, not just a high resolution label. Many selected handhelds document eight adjustable LEDs with three brightness levels. Kiguee lists eight front LEDs plus one on the side, while Festisoul provides 12 dimmable LEDs around its larger pipe probe. Klein Tools documents LED lighting but does not provide the same LED count in the supplied evidence.
More LEDs do not automatically guarantee a better image in every space. The useful comparison is whether the lights are adjustable, whether a side lens has its own illumination, and whether the probe can be positioned close enough to the target. A compact 5.5mm camera may reach a cavity that a larger, brighter pipe head cannot.
IP ratings are technical protection specifications, not customer-performance claims. Hamwesh, Kiguee, EIMSOAH, Badafaci, Walfront, and Yobadam document IP67 or equivalent IP67 camera protection. Festisoul documents IP68 for its 23mm probe. These ratings support consideration for damp or wet inspection environments, but the listing details do not establish that every part of each complete system has the same rating.
Battery information varies. Hamwesh uses a rechargeable design with Type-C charging. Walfront and Yobadam document Type-C charging, while Badafaci lists a 2000mAh rechargeable battery. Festisoul lists a 4500mAh lithium-polymer pack and USB power-bank top-ups. Runtime claims are listing specifications, so compare them with the expected inspection duration rather than treating them as universal results.
Festisoul 98.4FT Sewer and Drain Camera ranks first overall in this specification-based comparison under the published weighted criteria.
The final choice among the best color lcd borescopes depends on the documented features that match your intended use.
Festisoul 98.4FT Sewer and Drain Camera is the highest-scoring returned product and the first overall specification-based choice. Its large tilted color LCD, long fiberglass cable, IP68 probe, reel, and DVR are especially well matched to extended pipe inspections. Among the top color lcd borescopes for more portable work, the Klein Tools ET18 is the narrow-probe pick, while Hamwesh is the articulating option. Choose a dual-lens model such as Kiguee or Yunseity when side viewing is more useful than maximum cable reach. For a general handheld tool, compare the documented IP rating, probe diameter, lighting, storage, and charging details before deciding.
Klein Tools ET18 has the smallest documented camera diameter among the selected products at 5.5mm. Its 4.9-foot armored gooseneck is shorter than the 5m handheld cables and far shorter than the Festisoul reel, but the smaller probe may be the more important specification for tight openings.
Not necessarily. Hamwesh, Yunseity, Kiguee, Badafaci, Walfront, and Yobadam explicitly describe standalone operation without a smartphone, Wi-Fi connection, or driver software. Festisoul provides its own display and DVR system. Always distinguish a built-in LCD from models that rely on an app or external screen.
Yunseity and Kiguee explicitly describe switchable front-and-side lenses, and EIMSOAH documents a switchable dual-lens design. Dual-lens viewing can help inspect adjacent surfaces without repeatedly repositioning the cable, but it does not replace checking probe diameter, cable flexibility, lighting, and water protection.
The supplied listings identify IP68 on the Festisoul probe and IP67 on several handheld camera probes. IP68 represents a different protection rating than IP67, but the listing evidence here does not provide a directly comparable immersion duration or depth. Consider the rating alongside the probe design and the conditions stated for your inspection.
Festisoul explicitly includes DVR recording and a 16GB micro-SD card. Kiguee lists a built-in 32GB card, while EIMSOAH documents support for storage up to 64GB. Other selected listings mention storing photos or videos without fully specifying capacity, so confirm the storage arrangement if documentation is central to the job.
